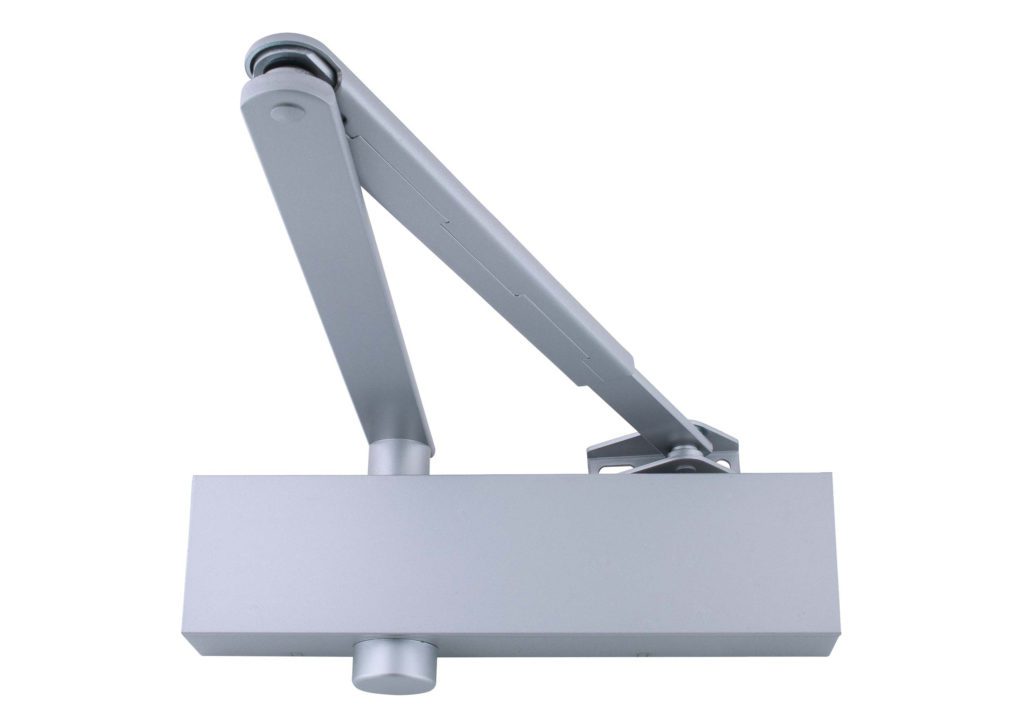

Door Controls

S800

EN2-5 power adjustable by spring door closer

  • Extruded Body
  • Rack and Pinion mechanism with matching flat form armset
  • Adjustable closing speed and latch action
  • Backcheck
  • Optional Delayed Action model available S810* (the product falls outside of it’s UKCA, CE & Certifire approval with this feature in use)
  • Universal Application (Fig 1 & Fig 6)

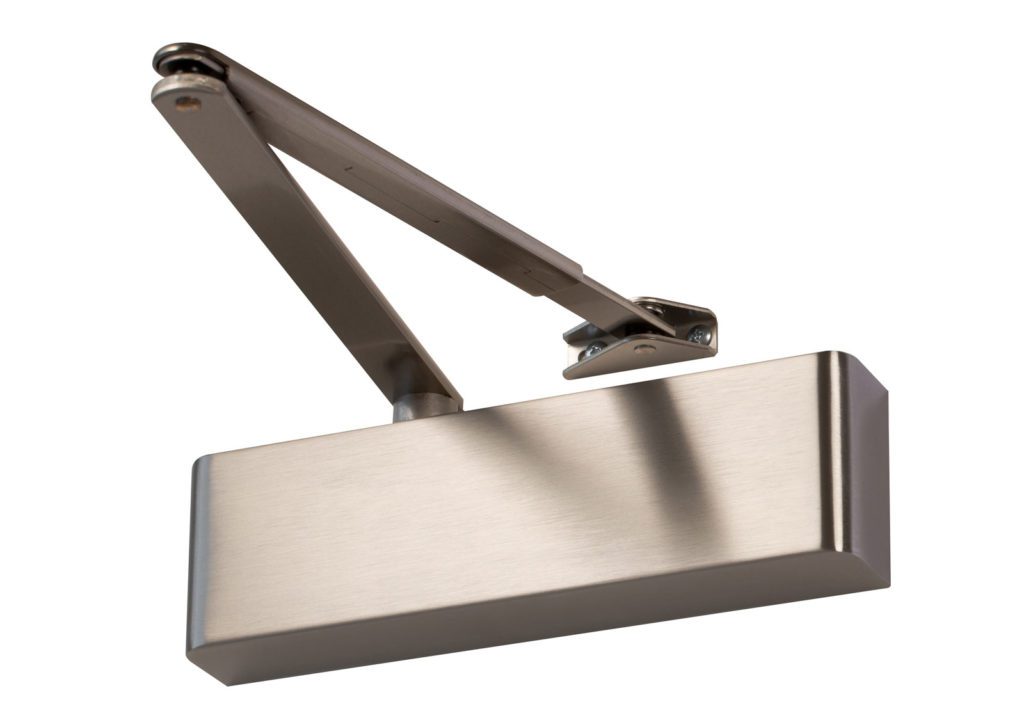

  • Slideplate, Slimline Semi Radius & Rectangular cover options
  • Genuine Stainless Steel material is used for all stainless steel cover variants
  • Capable of meeting the opening force requirements of ADM and BS8300 (836mm minimum door width at EN3 Fig 1 Pull Side Door Mount Application, 874mm door width at EN3 Fig 66 Push Side Door Mount Application).
  • UKCA, CE & Certifire approved product

Available Cover & Arm Finishes
